Productions



We Are Committed To Providing High-Quality Functional Co Extruded Films For Various Industries

THERMOFORMING

Description

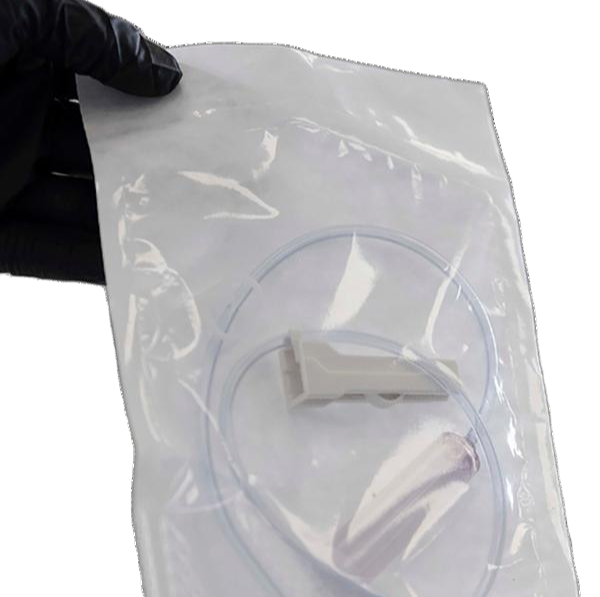

Paper-plastic packaging bags are generally composed of two sides, one side is paper that transmits and discharges sterilization factors, and the other side is a transparent composite film (plastic film) that is impervious to liquids, air, and gases. The exchange of air disinfectant factors takes place on one side of the paper, which also has good microbial barrier function due to the material. Moreover, the plastic film side allows for visibility of the contents inside the package, making the packaged items clear at a glance and having good impermeability.

Parameter
Advantage

Exclusive supporting manufacturer

We have deep cooperation with multiple manufacturers of external blister packaging machines and medical dialysis paper, and can provide customized combinations

Improve production efficiency

Equipped with various mainstream blister packaging machines and medical base paper, it enhances the production efficiency of manufacturers.

Multiple sterilization methods

It is widely applicable to three sterilization requirements: E0 (ethylene oxide sterilization), irradiation (gamma-ray sterilization), and high-temperature steam sterilization.

Compatible with multiple products

It possesses high customization capabilities and excellent stretching performance, enabling it to adapt to various irregular-shaped products.

Combined with various medical base papers

Combined with medical base papers such as Tyvek, dialysis paper, adhesive-coated paper, and Parker high-temperature paper, it exhibits excellent anti-contamination capabilities and ease of use.

Provide adjustment of heat sealing strength

It can be adjusted to match paper packaging, providing a heat seal strength suitable for end-user applications.

Medical products are widely used

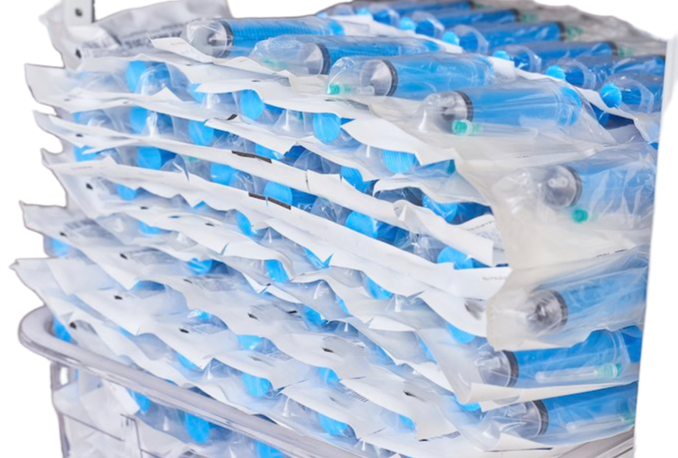

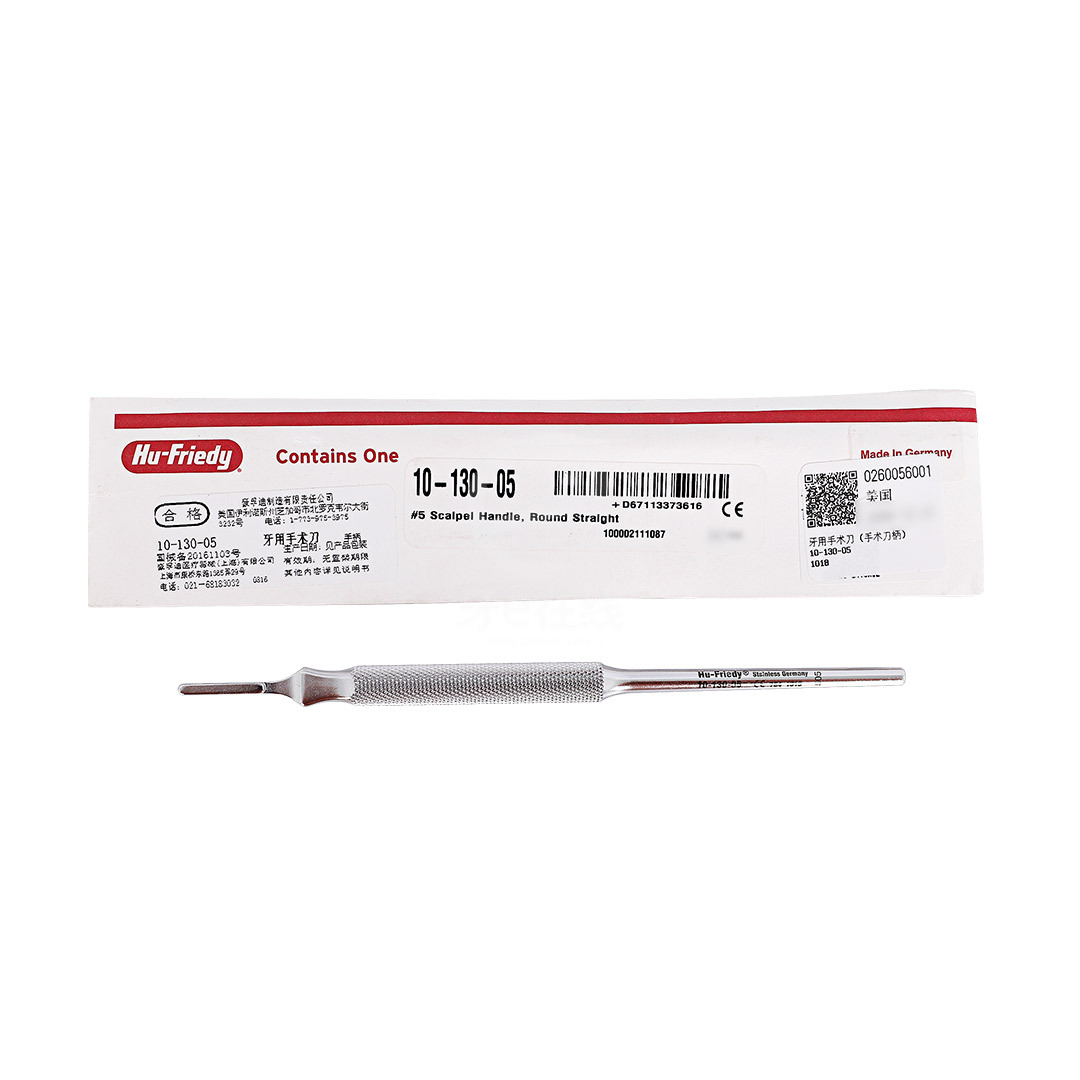

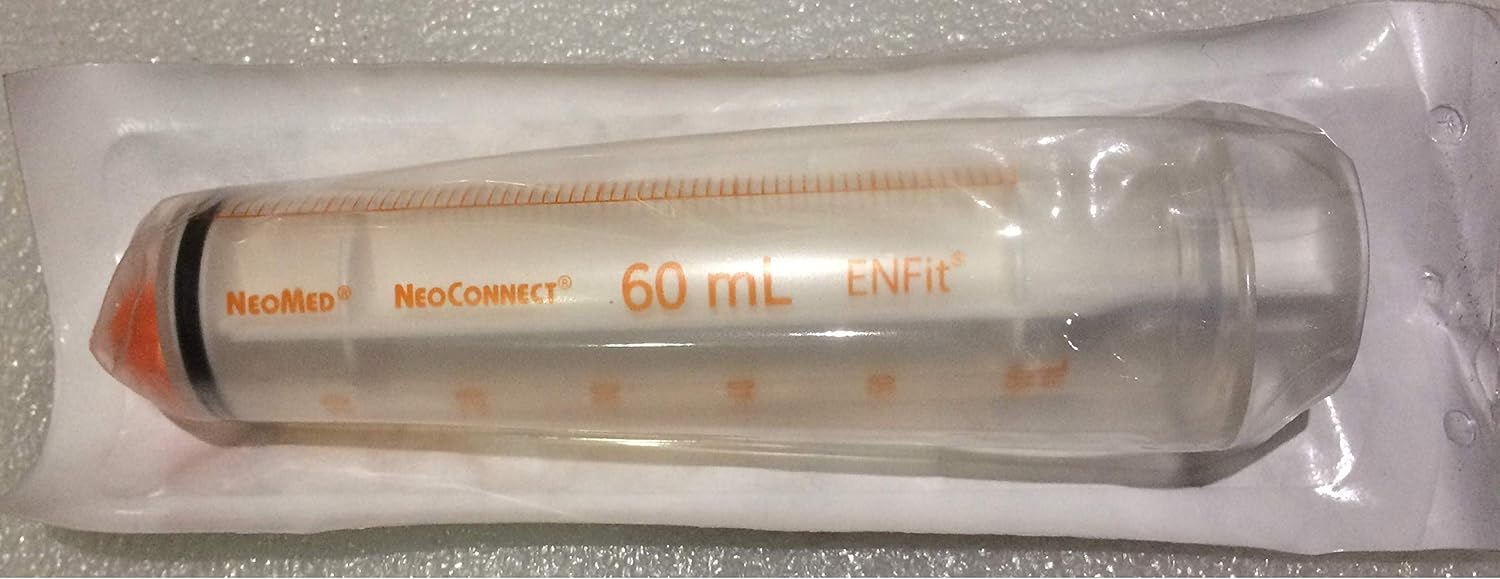

Commonly used in medical catheters, medical instruments, medical dressings, disposable debridement kits, surgical gowns, and other products.

  • Advised heat  sealing temperature:130°C~140°C



    heat sealingtime:1s~1.5s



    thermo forming temperature 85°C~105°C.



    Best usage packaging for food saved above-70°C,



    or food sterilized under100°C.

  • Advised heat sealing tempera-ture:145℃~160°℃,



    heat sealing time:1s~1.5s,



    thermoforming temperature105℃~115℃.



    Best usage food sterilized at 121℃ in 30min.






  • Advised heat sealing temperature:130℃~140℃,



    heat sealing time:1s~1.5s,



    thermo-forming temperature85℃~105℃.



    Best usage packaging for fresh food stuff such as meat saved at 0℃~10℃, or food sterilized under 100℃






  • Advised heat sealing temperature:145℃~160°℃,



    heatsealing time:1s~1.5s,



    thermoforming temperature 105℃-115°℃.



    Best usage packaging for food sterilized at121℃ in 30min,and demands a longshelf life.






  • Advised heat sealing temperature at a low temperature of 90℃,



    heat sealingtime:1s-1.5s,



    co-extruded PE/TIE/EVOH/TIE/PEfilm laminated with BOPE used as recycle bag making film or top lidding film.

    Can be used for liquid,frozen,frozen packaging.suitablefor pasteurization,hot filling.high pressure processing,iradiation,microwave steril-ization method of safety sterilization.

    Also suitable for freezerstorage,air and vacuum seal.The appearance is more flatnot easy to cur,smoothand beautifuL

  •

    Advised heat sealing temperature:145℃-160℃,



    heat sealing time:1s-1.5s,



    thermoforming temperature 105℃-115℃.



    Bet usage packaging for food sterilized at 121℃ in 30min and demands a long shelf life



    The easy peeling property enhances the omfort of  usage.




  • Advised heat sealing temperature:135℃~140°℃,



    heatsealingtime:1s~1.5s,



    thermoforming temperature85℃~100℃.



    Bestusage packaging forfresh food stuff such as meat saved at 0℃~10℃,or food sterilized under 105℃



    The easy-peeling property enhances the comfort ofusage.






  • Advised heat sealing temperature:135℃~140°℃,



    heatsealingtime:1s~1.5s,



    thermoforming temperature85℃~100℃.



    Bestusage packaging forfresh food stuff such as meat saved at 0℃~10℃,or food sterilized under 105℃



    The easy-peeling property enhances the comfort ofusage.






  • The skin film is an easy to openfilm with a strong.consistentpeel,improving the convenience of customers when theyneed to eat the product.Thetight seal also prevents the con-tents from movingduringstorageand transportation,ensur-ing that the productcontinues to lookits best.Itcan be easilyused on fresh,frozen and processedfoodsandis suitableformicrowave cooking. Skin film is also suitablefor a variety of pallet types and ava-riety of products,makingitavery popular film forawiderange of customers.
